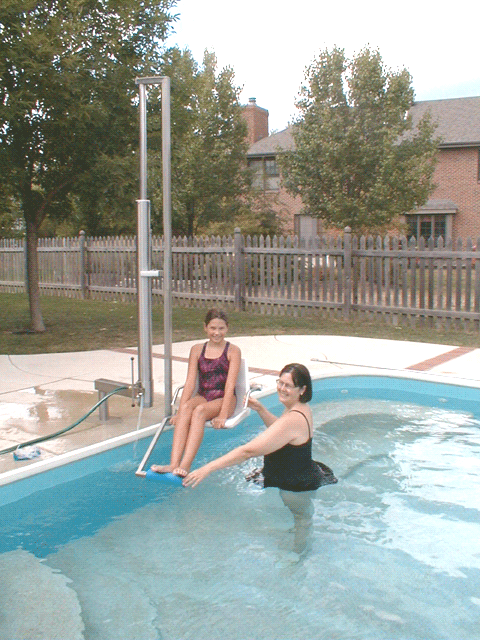

Aquatic Access Pool Lift with 180 Rotation (IGAT - 180 AD) is user-operable, and its seat height is easily adjustable to accommodate various wheelchair heights.

The 180 degree clockwise turn allows the greatest access from the deck for the user and any assistants.  ADA COMPLIANT POOL LIFT.

NOTE: USE THE IGAT-180AD POOL LIFT WHEN YOUR POOL HAS AN AUTOMATIC COVER.

Side-to-side transfers are easy, the footrest flips up and the mounting arm is under the seat. This allows for unobstructed transfer. The seat rotates forward when entering the pool, and backward when exiting the water. The standard seat has a right arm only, but a flip-up outer arm is available. All components required for installation and operation are included in the price and ship with the pool lift, although many options and extras are available, including the new California Seating Package to meet the California Building Code for Pool Lifts. This unit is also available as a heavy-duty model with increased lifting capacity. Just let us know your needs when ordering. ]

Static pressure (measured at faucet or hose with no water flowing) is affected by variables in the material, length, diameter and rigidity of the water lines and hoses from the street to the lift, and by how many other faucets are open at the same time. Operating pressure requirement (measured while lifting) is not affected by these variables.

** Opposite facing (opposite turn) and heavy-duty units available (custom charges may apply).

Dimensional worksheet or Serial# of Existing lift IS REQUIRED to order your custom lift

Features:

• FOR POOLS AND SPAS WITH AUTOMATIC POOL COVERS OR UNUSUAL DESIGN

• Elevated Deck Clearance to allow for automatic pool covers or pool/spa combinations.

• In-Ground Automatic Turn 180°

• Certified to meet the 2010 Standards for Accessible Design as well as the requirements of the ADA, ABA and CBC.

• Powered by Water Pressure -- lifts up to 350 LB. at 55-65 PSI while lifting or approx. 60 PSI static faucet pressure. *

• Custom Heavy-Duty Modification Available

• No dangerous and expensive batteries required. Completely green to operate.

• Standard Vertical Seat Travel - 42"

• Portable (Lift Out and Put Away)

• Each lift includes a seat belt

• Flip-Up Footrest Included

• California Seating Package Available to conform with California Building Code

• Can Be Padlocked in Deck Position

• Allows Independent Operation

• ADA COMPLIANT POOL LIFT

OPTION:

• California Seating Package includes flip-up outer armrest accessory required by the California (and some other states) Building Codes.

Lead Time:

Fabrication of standard lifts can be completed fairly quickly since partially completed units are usually in stock. Call for turn-around time. Time required for actual completion varies depending on the amount of customization required for a particular lift, and the number of lifts in line before yours. Because each lift is built to fit a particular pool, Aquatic Access does not complete assembly of the lift until they have received full dimensional information.  Custom lifts are not returnable.
