Linear Shower Drains + Expert Advice

Linear Shower Drain projects can be confusing. Save time, money & frustration with expert advice from EZ Able® - fast, knowledgeable & great prices too.

What is a linear shower drain?

A linear shower drain is a type of shower drain that has a long, narrow shape and is typically installed along one wall or the entrance of a shower or bathroom. Linear shower drains come in a variety of materials, such as stainless steel or PVC, and have a decorative grating on top. They are also great for creating barrier-free showers and wheelchair access showers.

Why do people like linear shower drains?

Linear Shower Drains provide an easy way to create a barrier free shower because the shower pan only slopes in one direction. The one direction sloping allows for the use of large format tiles, which is popular in modern design.  Contractors like using linear drain systems for the ease of use, quick installation and reliable drainage given by the pre-sloped underlayment panels.

 Compare Linear Drains

  Proline Drain Showerline Drain Luxe Linear Drains
Applications Shower, Sinks, Custom Shower, Sinks Shower, Sinks, Knife Slots, Square Shower Drains, Pool Drains
Drain Body Material Stainless Steel PVC Stainless Steel
Drain Cover Material Stainless Steel  Stainless Steel Stainless Steel
Pan Sloping Yes Yes No - Installer Chooses Method
Waterproofing Kits Yes Yes No - Installer Chooses Method
Waterproofing Method Liquid ONLY Liquid or Membrane Liquid or Membrane
Quick Ship Available Yes Yes Yes
Custom Quotes Available Yes Yes Yes

Subcategories

SHOWERLINE drain | Linear Drain | PVC Body

SHOWERLINE drain linear drain system offers the same look as the PROLINEdrain, but at a more affordable price.

Create a custom shower pan for tile with the quick and easy pre-sloped panels. SHOWERLINE Linear drain is a lower-cost way to achieve a sleek, high-end linear drain look.

Showerline Drain features a plastic drain body and a stainless steel drain cover.

PROLINE DRAIN | Your Linear Shower Drain Solution

PROLINE DRAIN | EASILY CREATE A BEAUTIFUL TILED SHOWER

Proline Drain is now designed to work with LIQUID WATERPROOFING ONLY.

Hoping to use membrane/fabric waterproofing?  Try the NEW more affordable Quickdrain linear drain -  Showerline Drain.  Click Here  |  Proline Drain Brochure & Planning Guide?  Click Here  |   Click Here to Watch Proline Drain Installation Videos

WOULD YOU LIKE HELP DETERMINING WHAT PARTS YOU NEED FOR YOUR JOB? CLICK HERE

NO PROBLEM!  Just send us your shower drawing and we'll put together a parts list & create a custom quote specifically for you.  It is that EZ!

CLICK HERE for your custom material list & quote



STEP 1


ORDER BODY

Click Here

STEP 2

Proline Drain Cover / Proline Drain Strainer

ORDER DRAIN COVER

Click Here

STEP 3

Proline Drain Spacers

ORDER SPACERS

Click Here



STEP 4

Proline Drain Placement Brackets

ORDER ACCESSORIES

Click Here

STEP 5

Proline Drain Quick Slope

ORDER SHOWER BASE

Click Here

STEP 6

Source Liquid Waterproofing Locally

Linear Shower Drain Overview

The concept of the linear drain system centers on the idea of creating a one-way slope to a single line which extends completely between two vertical surfaces. It is critical that wherever the linear drain is placed in the shower pan, it must extend completely between two vertical surfaces to avoid standing water “dead spots”.

It is important to note that there are two basic categories of linear drain available on the market today. One makes achieving the look of a linear drain possible with a decorative cover, yet still retains the old two-part clamping ring drain system beneath. This adds additional labor to installation and is not as efficient. The second category of linear drain – to which the QuickDrain system belongs – is a true drain in that it includes a drain body beneath with a waste outlet that connects directly with the plumbing.

The QuickDrain system does not just look like a linear drain – it is a linear drain. With our patented Sure Flow SystemTM, not only can you count on a beautiful shower design, you can count on its being easier to install and functioning more efficiently for years to come!

One Direction Floor Slope

The one-way slope in the shower pan, combined with a 100% sloping linear drain trough allows for the most complete drainage of any linear drain available. Once standing water dries in a drain trough, it leaves deposits which make the drain nearly impossible to clean. The QuickDrain system eliminates standing water and resulting mold and bacteria. A one-way slope in the shower pan provides a stable surface for wheelchairs and prevents slippage. Clean design, clean shower.  The one direction floor slope also makes possible the use of large tiles.  No longer are mosaic tiles required to accommodate the multiple sloping surface of a standard shower with a center drain.

PROLINE DRAIN | Your Linear Shower Drain Solution

Wall Drain for Tile Showers | WALLdrain

Wall Drain represents the latest innovation in linear drain design from QuickDrain USA. The shower floor slopes to the subtle wall channel providing a seamless shower design.

In order to fully utilize all the advantages of WallDrain by QuickDrain USA, please follow the recommendations.  Installation Manual

Click Here to View Installation Video

CLICK HERE TO REQUEST A FREE CUSTOM SHOWER CONSULTATION

Retrofit Linear Drain Installation by Quickdrain

No recessing required | Goes where no drain has gone before

Experience the difference | Simpify your Linear Drain Installations

One Size Linear Drain | Up to 62 Inches Long

Custom Fit | Trims Easily in-the-field

Now Custom Curbless Tile Showers are a reality in high-rise residential buildings!

LUXE Linear Drains

LUXE Linear Drains 100% stainless steel for modern stylish showers in residential, commercial, ADA-compliant showers. Free shipping $50+ Orders.

Architectural Grade Welded Grate – Unmatched in design, hydraulic function, and aesthetic appeal. Minimal spillover when installed at threshold. Limitless custom applications.

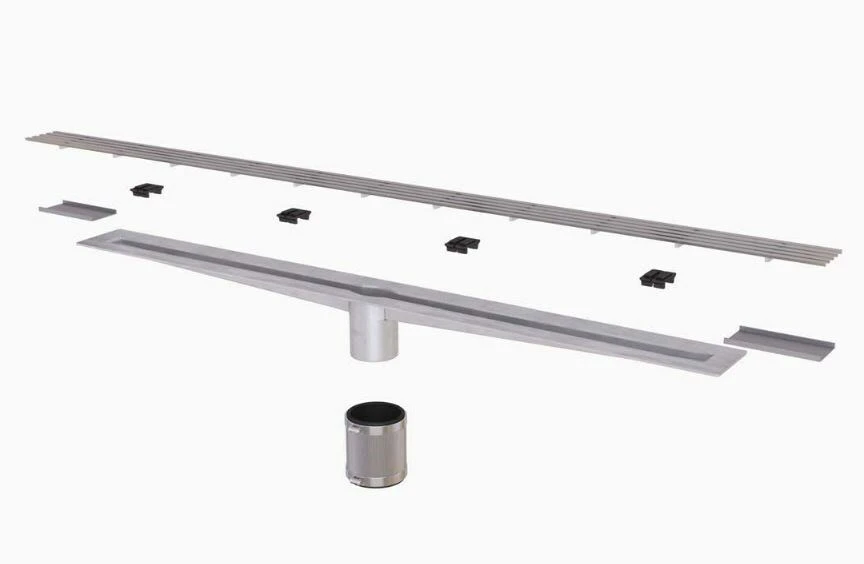

LUXE Wedgewire


  • WW-26 Premium Wedgewire Grate & Channel with 2” Dia. Central Outlet 26” Long

  • WW-30 Premium Wedgewire Grate & Channel with 2” Dia. Central Outlet 30” Long

  • WW-36 Premium Wedgewire Grate & Channel with 2” Dia. Central Outlet 36” Long

  • WW-40 Premium Wedgewire Grate & Channel with 2” Dia. Central Outlet 40” Long

  • WW-48 Premium Wedgewire Grate & Channel with 2” Dia. Central Outlet 48” Long

  • WW-60 Premium Wedgewire Grate & Channel with 2” Dia. Central Outlet 60” Long

Our economical square hole pattern grate elegantly provides form and function.

LUXE Pattern Grate


  • SP-26 Square Hole Pattern Grate & Channel with 2” Dia. Central Outlet 26” Long

  • SP-30 Square Hole Pattern Grate & Channel with 2” Dia. Central Outlet 30” Long

  • SP-36 Square Hole Pattern Grate & Channel with 2” Dia. Central Outlet 36” Long

  • SP-40 Square Hole Pattern Grate & Channel with 2” Dia. Central Outlet 40” Long

  • SP-48 Square Hole Pattern Grate & Channel with 2” Dia. Central Outlet 48” Long

  • SP-60 Square Hole Pattern Grate & Channel with 2” Dia. Central Outlet 60” Long

Popular among designers and customers wishing to create the illusion of water vanishing into the floor. Compatible with all flooring materials.

LUXE Tile Insert


  • TI-26 Tile Insert Linear Drain & Channel with 2” Dia. Central Outlet 26” Long

  • TI-30 Tile Insert Linear Drain & Channel with 2” Dia. Central Outlet 30” Long

  • TI-36 Tile Insert Linear Drain & Channel with 2” Dia. Central Outlet 36” Long

  • TI-40 Tile Insert Linear Drain & Channel with 2” Dia. Central Outlet 40” Long

  • TI-48 Tile Insert Linear Drain & Channel with 2” Dia. Central Outlet 48” Long

  • TI-60 Tile Insert Linear Drain & Channel with 2” Dia. Central Outlet 60” Long



Curbless Shower Kits for Tile

Curbless Shower Kits for Tile help create a custom Curbless Tile Pan without modifying your floor joists.

Pre-sloped, easy to install sloping panels, are a great way to create a barrier free shower pan with a linear drain!
