Quickdrain USA

Linear Shower Drain | Proline Drain Body | Step 1

MSRP: $859.38 - $1,099.17
$629.99 - $805.78
Proline PLDxx-N
Free Shipping
Adding to cart The item has been added


Linear Shower Drain by Quickdrain. Proline Drain Body is the 1st Step to creating a beautiful curbless tiled shower easy.

Select a drain cover that matches your personal style.  Linear drain system, by QuickDrain.

316L Stainless Steel Drain Body - Available in 13 Stock Lengths

Custom sizing & configurations are available

In-Stock Sizes: PLD26, PLD27.5, PLD30, PLD36, PLD40, PLD44, PLD46, PLD48, PLD52, PLD57, PLD63, PLD68

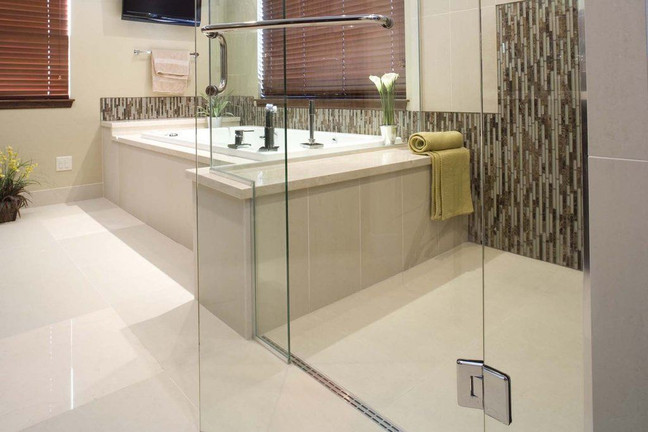

The Proline linear shower drain system is your premier universal design solution to create walkin tiled showers.  No longer be limited to mosaic tiles for shower floors. This solution creates a sleek looking, modern and functional shower.  Form and function come together while maintaining Universal Design principles.




  • Clean and unintrusive look.
  • Use any size tile.
  • Eliminate the hassle of poured shower pans. Quick Drain has innovative membrane and sealant system.
  • Side and bottom drain outlet models available.
  • Very high drain flow capacity.
  • High quality Stainless Steel drain.
  • Easy to clean. Removable drain cover and strainer. Even the waste pipe is accessible for cleaning.
  • Ideal for: shower drain, deck drain, pool drain.
  • Unlimited drain length.  Linear drain segments can be coupled. Very appealing and attractive design. The slot drain cover is only 1 1/2" (one and half inches) wide.

Specification Overview

• 18 Gauge 316L Stainless Steel
• Key feature of the drain body is a fully sloped trough that prevents
standing water and solids being deposited in the trough
• 2" I.D. schedule 10 stainless steel down spout waste outlet
• Length adjustability of drain trough with use of trough extensions to
accommodate finished openings from 26.25" - 72". QuickDrain USA
recommends the drain cover extend the entire length of the shower
pan (wall to wall or wall to curb)
• Height adjustability of drain cover with use of spacers for different
thicknesses of finish material from 3/8" to 3/4". Custom spacers are
available for finish material thicknesses from 1"- 2 1/2"
• Custom drain lengths available from 10"-100”. Side outlets,
Commercial outlets, Multiple outlets and Resinous drains.
• For more information on our custom drains please visit our website:
• Available with tamper proof cover and screws.


  • Height adjustable spacers*
  • Trough Extensions (2)
  • Two Band coupling (1)
  • Cover removal key (2)

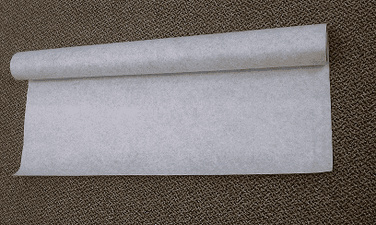

  • Transition Tape (1)
  • Inside Corners (4)
  • Outside Corners (2)
  • Reinforcement Tape (1)
  • *See chart for part quantities of different drain lengths

HELPFUL HINT: The two most requested lengths are 26 and 58 inch. Why? This is the footprint of a classic 5 foot bathtub. Linear drains are a great, cost-effective solution for people wanting to create a tiled shower in an existing bathroom.

The linear drain can be lined up with any of the four sides of the bathing enclosure. To allow for the thickness of the walls and allow for some space next to the ends of the drain, choose a drain length that is two inches shorter than the side where you want to put the drain. The best place to put the drain can depend somewhat on the existing plumbing and wall.


Choose Size Above: PLD 26, PLD 27.5, PLD 30, PLD 36, PLD 40, PLD 44, PLD 46, PLD 48, PLD 52, PLD 57, PLD 63, PLD 68

Linear Shower Drain | Proline Drain Body | Step 1

Shipping: TYPICALLY SHIPS IN TWO BUSINESS DAYS | When ordered on Standard Business Days (M-F) before 12PM EST.

Need it FAST?  Expedited Shipping Options are Available at Check-out.

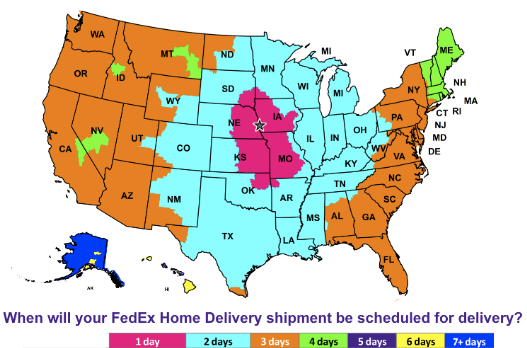

FedEx Service Maps and charts are a general representations of transit, and not a guarantee of delivery time.

Please Call 877.392.2531 for shipping availability and cost to ship to locations outside of the Contiguous USA.

See More

Specification Sheets

Lead Time and Shipping Info

Warranty Information

COVERAGE: QD Holdings I LLC, an affiliate of Oatey Co. (collectively referred to as “QuickDrain”) warrants that all QuickDrain® branded products (the “Goods”) will be free from defects in material and workmanship for the lifetime of the plumbing system in which installed. RESOLUTION: If any of the Goods are found by QuickDrain to be defective, such Goods will, at QuickDrain’s option, be replaced or repaired at QuickDrain’s cost. Buyer’s sole and exclusive remedy against QuickDrain shall be for the repair or replacement of defective Goods as provided herein. (The sole purpose of the stipulated exclusive remedy shall be to provide buyer with free repair or replacement of defective Goods. This exclusive remedy shall not be deemed to have failed of its essential purpose so long as QuickDrain is willing and able to repair or replace defective Goods in the prescribed manner.) MAKING A CLAIM: To make a claim under this Limited Lifetime Warranty, the buyer must provide QuickDrain with written notice within thirty (30) days of discovering any alleged defect in the Goods covered by this Limited Lifetime Warranty, together with date and proof of purchase of such Goods, the name and address of all installers, and all invoices related to the original installation and any repair work. Claims can be sent via email (to technical@oatey.com) or by mailing: QuickDrain Attn: Customer Service 20600 Emerald Parkway Cleveland, OH 44135 Any cause of action for breach of the foregoing warranty shall be brought within 13 months from the date the alleged breach was discovered or should have been discovered, whichever occurs first. DISCLAIMER: THE FOREGOING WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING THOSE OF MERCHANTABILITY OR FITNESS FOR ANY PURPOSE NOT EXPRESSLY SET FORTH HEREIN, AND QUICKDRAIN MAKES NO OTHER REPRESENTATION OR WARRANTY OF ANY KIND. No statement by QuickDrain or its agents, by words or action, other than as set forth in this language shall constitute a warranty. GOODS WHICH MAY BE SOLD BY QUICKDRAIN BUT WHICH ARE NOT MANUFACTURED BY IT ARE NOT WARRANTED BY QUICKDRAIN, BUT ARE SOLD ONLY WITH THE WARRANTIES, IF ANY, OF THE ORIGINAL MANUFACTURERS THEREOF. This warranty does not cover labor or other costs or expenses to remove or install any defective, repaired or replaced Goods. QuickDrain’s warranty does not apply to any Goods which have been subjected to misuse, mishandling, misapplication, neglect (including but not limited to improper maintenance), accident, improper installation, modification (including but not limited to unauthorized parts or attachments), or adjustment or repair performed by anyone other than QuickDrain or one of QuickDrain’s authorized agents. LIMITATION OF LIABILITY: QUICKDRAIN ‘S LIABILITY (WHETHER UNDER THE THEORIES OF BREACH OF CONTRACT OR WARRANTY, NEGLIGENCE, OR STRICT LIABILITY) FOR ITS GOODS SHALL BE LIMITED TO REPAIRING OR REPLACING PARTS FOUND BY QUICKDRAIN TO BE DEFECTIVE, OR AT QUICKDRAIN’S OPTION, TO REFUNDING THE PURCHASE PRICE OF SUCH GOODS OR PARTS THEREOF. AT QUICKDRAIN ‘S REQUEST, BUYER WILL SEND, AT BUYER’S SOLE EXPENSE, ANY ALLEGEDLY DEFECTIVE PARTS TO A LOCATION OF QUICKDRAIN’S CHOOSING. DISCLAIMER OF CONSEQUENTIAL DAMAGES: IN NO EVENT SHALL QUICKDRAIN BE LIABLE FOR CONSEQUENTIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH THIS AGREEMENT, INCLUDING WITHOUT LIMITATION TO BREACH OF ANY OBLIGATION IMPOSED ON QUICKDRAIN HEREUNDER OR IN CONNECTION HEREWITH. CONSEQUENTIAL DAMAGES FOR PURPOSES HEREOF SHALL INCLUDE, WITHOUT LIMITATION LOSS OF USE, INCOME OR PROFIT OR LOSSES SUSTAINED AS THE RESULT OF INJURY (INCLUDING DEATH) TO ANY PERSON OR LOSS OF OR DAMAGE TO PROPERTY (INCLUDING WITHOUT LIMITATION PROPERTY HANDLED OR PROCESSED BY THE USE OF THE GOODS, OR DAMAGES OR LOSSES SUSTAINED AS THE RESULT OF WORK STOPPAGE). BUYER SHALL INDEMNIFY AGAINST ALL LIABILITY, COST OR EXPENSE WHICH MAY BE SUSTAINED BY QUICKDRAIN ON ACCOUNT OF ANY SUCH LOSS, DAMAGE OR INJURY. ©2022 OateySCS. All Rights Reserved. This information is based on data believed to be reliable but Oatey makes no warranties, express or implied, as to its accuracy and assumes no liability arising out of its use. The data listed falls within the normal range of product properties but should not be used to establish specification limits or used alone as the basis of design. Oatey’s liability to purchasers is expressly limited to the terms and conditions of sale. Oatey is a trademark of Oatey Co. Oatey Co. is part of the Oatey family of companies. All other trademarks can be found on Oatey.com
