Description
48 x 100 QUICKdrain ADA Pan Sloping Kit | CURBLESS Shower
This 48 wide by 100 deep QuickDrain ADA Pan Sloping Kit for tile is made of pre-sloped extruded rigid PET* plastic foam. Strong yet lightweight, non-reactive, economical, and shatterproof.
For Curbless Showers 48" wide x 100" deep. MAY EASILY BE CUT TO CUSTOM SIZE WITH UTILITY KNIFE.
NOTE: For Curbless Showers it is recommended that the Showerline Drain is placed parallel to the shower entry as shown in the example photo.
The Showerline Drain Pan Sloping Kit is chemically stable, UV resistant and suitable for both interior and exterior use. Can be used with both sheet and liquid topical waterproofing.
Features:
-
Speed and consistency of installation
-
Eliminates the need for traditional mud bed installations
-
Lightweight, durable with high compressive strength 145PSI
-
Interlocking design, can be quickly and easily modified to size and shape of on site conditions
-
Meets IAPMO PS-106-2013
-
100% post Consumer recycled and fully recyclable
Uses:
-
Interior and exterior use
-
Industrial, commercial and residential showers
-
Gang showers
-
Pet Showers Suitable Substrates ( Interior Only)
-
Concrete
-
Exterior Glue Plywood
-
Cement backer board Consult cement backer board manufacturer for specific installation recommendations.
-
OSB Or Avantech

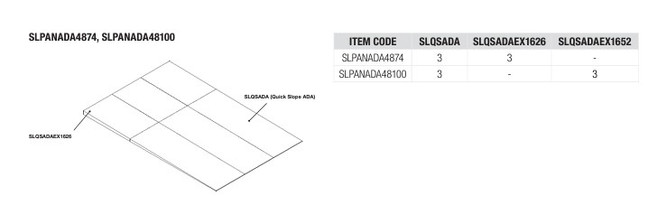

ShowerLine Pan Kit Includes:
-
Quantity 3 - Quick Slope (SLQSADA)
- Quantity 3 - SLQSADAEX1652
SHOWERLINE SYSTEM = DRAIN + COVER + SHOWERLINE PAN KIT + WATERPROOFING
Curbless Shower Application
Finish Opening Range | Drain + Cover | Curbless Pan | Waterproofing | Curbless |
24 - 32" | PVC2432 | SLPANADA48 | SLSWP-ADA |
32 - 40" | PVC3240 | SLPANADA48 | SLSWP-ADA |
40 - 48" | PVC4048 | SLPANADA48 | SLSWP-ADA |
48 - 56" | PVC4856 | SLPANADA64 | SLSWP-ADA |
56 - 64" | PVC5664 | SLPANADA64 | SLSWP-ADA |
64 - 72" | PVC6472 | SLPANADA72 | SLSWP-ADA+ |
