Model IGAT-180 is certified to meet the 2010 Standards for Accessible Design, which now a law in the United States.
Each Lift is Custom Made for Your Pool.
Often we receive calls from Aquatic Facilities from around the country who've enjoyed the use of their Aquatic Access pool lift for decades. Yet, after years of reliable use, they are ready for a new lift. For these installations, as long as the pool, water supply and lift requirements haven't changed, we can often process your order without a dimensional worksheet. Simply place your order. IN THE NOTES SECTION PROVIDE: Serial Number and/or the Installation Address. EZ Able® will do the rest. For all other customers, a dimensional worksheet is mandatory to have your custom pool lift manufactured.
It is user-operable, and its seat height is easily adjustable to accommodate various wheelchair heights. The 180 degree clockwise turn allows the greatest access from the deck for the user and any assistants. Side-to-side transfers are easy, the footrest flips up and the mounting arm is under the seat. This allows for unobstructed transfer. The seat rotates forward when entering the pool, and backward when exiting the water. The standard seat has a right arm only, but a flip-up outer arm is available.
All components required for installation and operation are included in the price and ship with the lift, although many options and extras are available, including the new California Seating Package to meet the California Building Code for Pool Lifts. This unit is also available as a heavy-duty model with increased lifting capacity. Just let us know your needs when ordering.
Static pressure (measured at faucet or hose with no water flowing) is affected by variables in the material, length, diameter and rigidity of the water lines and hoses from the street to the lift, and by how many other faucets are open at the same time. Operating pressure requirement (measured while lifting) is not affected by these variables.
** Opposite facing (opposite turn) and heavy-duty units available (custom charges may apply).
In-Ground Automatic Turn 180°
Certified to meet the 2010 Standards for Accessible Design as well as the requirements of the ADA, ABA and CBC.
Powered by Water Pressure -- lifts up to 400 LB. at 55-65 PSI open flow water pressure
Custom Heavy-Duty Modification Available
No dangerous and expensive batteries required. Completely green to operate.
Standard Vertical Seat Travel - 42".
Portable (Lift Out and Put Away)
Each lift includes a seat belt.
Flip-Up Footrest Included.
California Seating Package Available to conform with California Building Code.
Can Be Padlocked in Deck Position.
Allows Independent Operation.
Right arm on seat
no left arm
socket and socket cover
Seat Color: White or Blue
Clockwise rotation into pool, Counter-clockwise exiting pool
NOTE: Some Optional accessories may increase total weight and water pressure required to achieve rated load.
Counter-clockwise rotation into pool, Clockwise exiting pool
California Seating Package includes flip-up outer armrest accessory required by the California (and some other states) Building Codes.

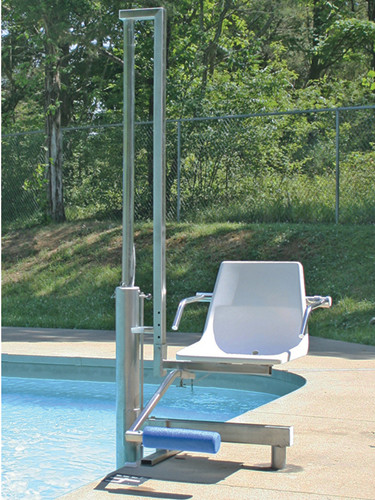

Aquatic Access pool lift | IGAT 180
Lead Time: Fabrication of standard lifts can be completed fairly quickly since partially completed units are usually in stock. Call for turn-around time. Time required for actual completion varies depending on the amount of customization required for a particular lift, and the number of lifts in line before yours. Because each lift is built to fit a particular pool, Aquatic Access does not complete assembly of the lift until they have received full dimensional information. Custom lifts are not returnable.
