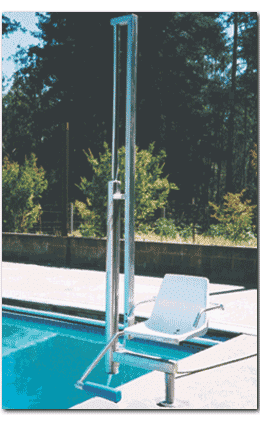

Aquatic Access Pool Lift with 135 Degree Rotation
Aquatic Access Pool Lift with 135 Degree Rotation Model IGAT-180/135 meets all of the 2010 Standards for Accessible Design, the requirements of the Americans with Disabilities Act (ADA), and provides easy and affordable access to in-ground pools and spas with built-in benches.
Specially configured for in-ground pools with built-in benches around the edge.
It is user-operable, and its seat height is easily adjustable to accommodate various wheelchair heights. The 135 degree clockwise turn allows the greatest access from the deck for the user and any assistants. ADA COMPLIANT POOL LIFT.
Dimensional worksheet or Serial# of Existing lift IS REQUIRED to order your custom lift.
The Model IGAT-180/135 (In Ground Automatic Turn of 135°) Pool Lift is built on the IGAT-180 design, but is specially configured for in-ground pools with built-in benches around the edge. Its seat rotates clockwise 135° down onto the bench, ending up with the seat back near the outer edge of the pool and the user's feet in the deeper center area. It features a rubber bumper on the bottom of the seat to protect the spa's bench. It is also available in an opposite turn version.
Side-to-side transfers are easy, the footrest flips up and the mounting arm is under the seat. This allows for unobstructed transfer. The seat rotates forward when entering the pool, and backward when exiting the water. The standard seat has a right arm only, but a flip-up outer arm is available. All components required for installation and operation are included in the price and ship with the lift, although many additional options are available. Just let us know your needs when ordering.
Static pressure (measured at faucet or hose with no water flowing) is affected by variables in the material, length, diameter and rigidity of the water lines and hoses from the street to the lift, and by how many other faucets are open at the same time. Operating pressure requirement (measured while lifting) is not affected by these variables.
** Opposite facing (opposite turn) and heavy-duty units available (custom charges may apply).
Features:
-
In-Ground, Automatic 135° Seat Rotation for Pools and Spas with Built-In Benches or Seats. Meets the 2010 Standards for Accessible Design (ADA regulations).
-
A rubber pad under the seat is available to protect bench.
-
Automatic 135° clockwise seat turn. (Standard unit rotates clockwise; opposite turn (opposite facing seat) is available.)
-
Certified to meet the 2010 Standards for Accessible Design as well as the requirements of the ADA, ABA and CBC.
-
Powered by Water Pressure -- Lifts 400 lbs. at 55-65 PSI, depending on weight of accessories chosen
-
Portable - lifts out and rolls away with no tools.
-
No dangerous and expensive batteries required. Completely green to operate.
-
Height of the lift in raised position varies up to 7'1".
-
Portable(Lift Out and Put Away)
-
Model IGAT-180/135 allows the user's feet on the footrest to avoid built-in benches and descends into the deeper center of the pool/spa.
-
Can Be Padlocked in Deck Position.
-
Allows Independent Operation.
-
ADA COMPLIANT POOL LIFT
CLICK HERE - DIMENSIONAL WORKSHEET
Video of Socket Installation
OPTION:
Lead Time:
Fabrication of standard lifts can be completed fairly quickly since partially completed units are usually in stock. Call for turn-around time. Time required for actual completion varies depending on the amount of customization required for a particular lift, and the number of lifts in line before yours. Because each lift is built to fit a particular pool, Aquatic Access does not complete assembly of the lift until they have received full dimensional information. Custom lifts are not returnable.
