Quickdrain Spacers for PROLINE or SHOWERLINE Drains

You DO NOT need to specify spacer size AS LONG AS the required spacer height is equal or under 7/8 inch. If you need a spacer over 7/8 inch, Click Here.

***Spacers come FREE only with an EZ Able® purchase of a PROLINEdrain or SHOWERLINEdrain Body.

What are Spacers?

  • Quickdrain Spacers help fill in the distance from the waterproofing to the top of finished tile (flooring material).

Did you lose some spacers? How many Spacers do you need for your drain body?


  • 4 Spacers Required - PVC2430D15, PVC2430D20, PVC3240D20
  • 6 Spacers Required - PVC4048D20, PVC4856D20
  • 8 Spacers Required - PVC5664D20, PVC6472D20


  • 4 Spacers Required - PLD26-N, PLD27.5-N, PLD30-N, PLD33-N, PLD36-N
  • 6 Spacers Required - PLD40-N, PLD44-N, PLD46-N, PLD48-N, PLD52-N
  • 8 Spacers Required - PLD57-N, PLD63-N, PLD68-N

Why are different spacers needed?

  • The Proline Drain Spacer Thickness varies depending on the thickness of your thinset and tile material.  The Proline Drain Spacers are located directly under the Proline Drain Cover / Proline Strainer.

You ONLY need to purchase SPECIAL METAL spacers if your tile + thinset is OVER 7/8 of an inch.  Click Here to go to the SPECIAL METAL SPACER PAGE.

Quickdrain spacers are used to accommodate varying thickness of tile and thinset of custom tile applications, making your tile choices almost endless!  Your universal design solution to the tiled shower.  Eliminate the curb and use the Proline Drain for a sleek looking and functional shower drain.

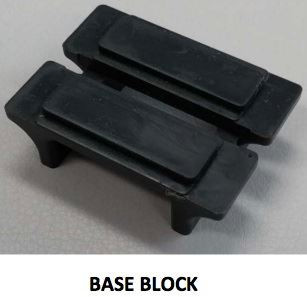

QuickFit Spacers are used to hold the drain cover even with the finished floor. Each package contains one base block and enough spacer blocks to adjust the drain cover from ½” to 7/8” above the drain body. However, if you need to raise the top of the cover to a height greater than 7/8” above the top of the drain body, you must use one of the stainless steel spacers found Here

INSTRUCTIONS: How to Fit Spacers

1. Remove the base spacer and the eight 1/8” spacer inserts from the bag.

2. Press a base block into the drain body. You can “test fit” the drain cover as you add spacer blocks to the base.

3. Press one insert on each side to make a “flush/even” height and continue to add and press inserts until you reach the height needed.

4. Disassemble the spacers and apply PVC Cement to each one as you reassemble into a permanent one-piece spacer to the height needed.

5. Press the spacers onto the attachment points on the bottom of the drain cover, placing one on each end and spacing them evenly along the length of the cover.

Should you need further clarification, please contact our Technical Support Team at 866-998-6685 or 970-668-0805.


Quickdrain Spacers for PROLINE or SHOWERLINE Drains

Shipping: TYPICALLY SHIPS IN TWO BUSINESS DAYS | When ordered on Standard Business Days (M-F) before 12PM EST.

Need it FAST?  Expedited Shipping Options are Available at Check-out.

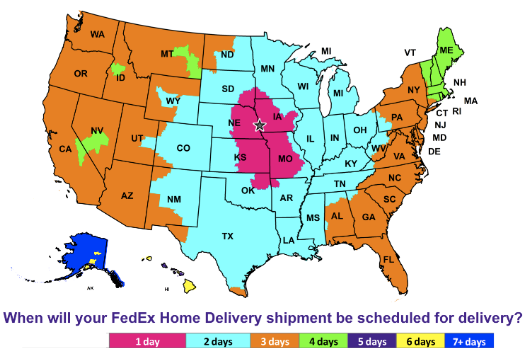

FedEx Service Maps and charts are a general representations of transit, and not a guarantee of delivery time.
