100% recycled PET foam with a compression strength of 145 psi. The support frame is compatible with the PVC4048D20 linear drain. SIZE: 48 X 12 INCHES
Cuts with utility knife.
It is strong yet lightweight, non-reactive, economical, and shatterproof.
Chemically stable, UV resistant and suitable for both interior and exterior use
Can be used with both sheet and liquid topical waterproofing
Interlocking design, can be quickly and easily modified to size and shape of on site conditions
Speed and consistency of installation • Eliminates the need for traditional mud bed installations
Lightweight, durable with high compressive strength 145PSI
100% post Consumer recycled and fully recyclable.
Meets IAPMO PS-106-2013
Industrial, commercial and residential showers
Interior and exterior use
Pet Showers Suitable Substrates ( Interior Only)
Gang showers
Exterior Glue Plywood
Concrete
Cement backer board** (**Consult cement backer board manufacturer for specific installation recommendations)
OSB Or Avantech
Why is ProLine Drain Linear Drain System the BEST? ProLine DRAIN - KBIS 2009 Best of Competition & Gold Winner!
KBIS Honors the Kitchen & Bath Industry's Newest and Most Innovative Products.
ProLine Drain meets IRC, IPC, and UPC compliance.

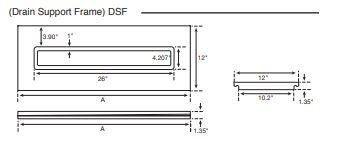

QUICKDRAIN drain support frame | SLDSF48
Shipping: TYPICALLY SHIPS SAME DAY | When ordered on Standard Business Days (M-F) before 12PM EST.
Free Shipping* is only available for orders over $50 shipping to a location within the contiguous USA.
Please Call 877.392.2531 for shipping availability and cost to ship to locations outside of the Contiguous USA.
