PROLINEdrain Curbed Shower Pan

PROLINEdrain Curbed Shower Pan

ProLine pan–Tileable shower receptor for Linear Drain –is made of extruded rigid PET (polyethylene terephthalate) plastic foam. It is strong yet lightweight, non-reactive, economical, and shatterproof.

Features:

• Chemically stable, UV resistant and suitable for bothn interior and
  exterior use
• Can be used with both sheet and liquid topical waterproofing
• Speed and consistency of installation
• Eliminates the need for traditional mud bed installations
• Lightweight, durable with high compressive strength 145PSI
• Interlocking design, can be quickly and easily modified to size and
  shape of on site conditions
• Meets IAPMO PS-106-2013
• 100% post Consumer recycled and fully recyclable.
• Custom curb sizes available

APPLICATIONS / USES

• Interior and exterior use
• Industrial, commercial and residential showers
• Gang showers
• Pet Showers

SUITABLE SUBSTRATES (INTERIOR ONLY)

• Concrete
• Exterior Glue Plywood
• Cement backer board**
• OSB Or Avantech

PROLINE PAN INCLUDES

• Flat Panel (SLFP1760)
• Drain Support Frame*
• Quick Slope (SLQS1652**, SLQS852***)
• Curb (SL Curb)
• Screws (5)

Proline Drain SKU	Pan SKU	*DSF	**SLQS1652	***SLFP1760
PLD26-N	PLPAN26	PLDSF26	2	-
PLD27.5-N	PLPAN27.5	PLDSF27.5	2	-
PLD30-N	PLPAN30	PLDSF30	2	1
PLD33-N	PLPAN33	PLDSF33	2	1
PLD36-N	PLPAN36	PLDSF36	2	1
PLD40-N	PLPAN40	PLDSF40	3	-
PLD44-N	PLPAN44	PLDSF44	3	-
PLD46-N	PLPAN46	PLDSF46	3	1
PLD48-N	PLPAN48	PLDSF48	3	1
PLD52-N	PLPAN52	PLDSF52	3	1
PLD57-N	PLPAN57	PLDSF57	4	-
PLD63-N	PLPAN63	PLPAN63	4	1
PLD68-N	PLPAN68	PLDSF68	4	1

APPROVALS AND LISTINGS

Before installing QuickDrain USA system, check with your local building
department/plumbing inspector to ensure compliance with the local
building codes. QuickDrain USA LLC is not responsible for any conflicts
with local building codes. QuickDrain USA LLC is not responsible for
improper installation of any part of the assembly or the waterprooofing
membrane. Dimensions are subject to manufacturer’s tolerance and can
change without notice.

Shipping: TYPICALLY SHIPS IN TWO BUSINESS DAYS | When ordered on Standard Business Days (M-F) before 12PM EST.

Need it FAST?  Expedited Shipping Options are Available at Check-out.

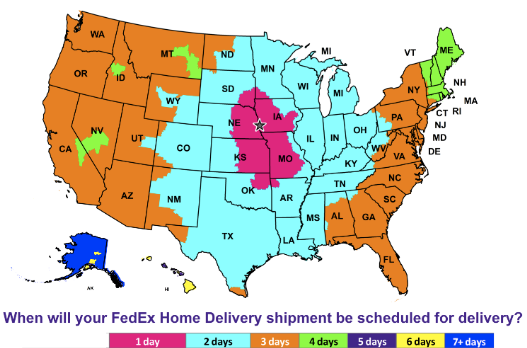

FedEx Service Maps and charts are a general representations of transit, and not a guarantee of delivery time.
