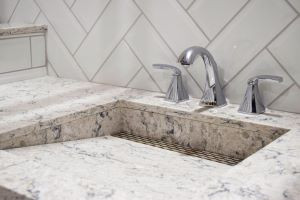

PROLINEdrain | 18" Sink Linear Drain Body

PROLINEdrain | 18" Sink Linear Drain Body

Proline Drain Sink Linear Drain Body is Made of 18 Gauge 316L Stainless Steel. Fully pitched trough with 1.5″ I.D. schedule 10 stainless steel waste outlet. The total length of the drain with flanges is 20″; the finished length is 18″. The PLD18S is not suitable for use as a floor drain.

PLD18S1 ProLine Sink Drain Assembly Features: Drain Body Includes: Height Adjustable Spacers (2) Before installing

Quick Drain USA system check with your local building department/plumbing inspector to ensure compliance with the local building codes.  Quick Drain USA is not responible for any conflicts with local building codes. Quick Drain USA
 is not responisble for improper installation of any part of this assembley or the waterproofing membrane.  Dimensions are subject to manufacturer's tolerance and can change without notice.

INCLUDES:

• PLD18S1

• 2 Spacers

Not Included:

Cover18 (Required, choose pattern above)

Features:

• Drain Cover Available in the designs above and in this 18 inch length

• Sink D316L Stainless Steel Key feature of the drain body is a fully-sloped trough that prevents standing water and solids being deposited into the trough

• 1.5” I.D. schedule 10 stainless steel waste outlet

• NOT SUITABLE AS A FLOOR DRAIN

• Length adjustability of drain trough with use of trough extensions.

• Height adjustability of drain cover with use of spacers for different thicknesses of finished material from 3/8” to ¾”. Custom spacers are available for finished material thicknesses from 1”-2 ½”

• QuickDrain USA recommends the drain cover extend the entire length of the sink.

PROLINEdrain | 18" Sink Linear Drain Body

COVERAGE: QD Holdings I LLC, an affiliate of Oatey Co. (collectively referred to as “QuickDrain”) warrants that all QuickDrain® branded products (the “Goods”) will be free from defects in material and workmanship for the lifetime of the plumbing system in which installed. RESOLUTION: If any of the Goods are found by QuickDrain to be defective, such Goods will, at QuickDrain’s option, be replaced or repaired at QuickDrain’s cost. Buyer’s sole and exclusive remedy against QuickDrain shall be for the repair or replacement of defective Goods as provided herein. (The sole purpose of the stipulated exclusive remedy shall be to provide buyer with free repair or replacement of defective Goods. This exclusive remedy shall not be deemed to have failed of its essential purpose so long as QuickDrain is willing and able to repair or replace defective Goods in the prescribed manner.) MAKING A CLAIM: To make a claim under this Limited Lifetime Warranty, the buyer must provide QuickDrain with written notice within thirty (30) days of discovering any alleged defect in the Goods covered by this Limited Lifetime Warranty, together with date and proof of purchase of such Goods, the name and address of all installers, and all invoices related to the original installation and any repair work. Claims can be sent via email (to technical@oatey.com) or by mailing: QuickDrain Attn: Customer Service 20600 Emerald Parkway Cleveland, OH 44135 Any cause of action for breach of the foregoing warranty shall be brought within 13 months from the date the alleged breach was discovered or should have been discovered, whichever occurs first. DISCLAIMER: THE FOREGOING WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING THOSE OF MERCHANTABILITY OR FITNESS FOR ANY PURPOSE NOT EXPRESSLY SET FORTH HEREIN, AND QUICKDRAIN MAKES NO OTHER REPRESENTATION OR WARRANTY OF ANY KIND. No statement by QuickDrain or its agents, by words or action, other than as set forth in this language shall constitute a warranty. GOODS WHICH MAY BE SOLD BY QUICKDRAIN BUT WHICH ARE NOT MANUFACTURED BY IT ARE NOT WARRANTED BY QUICKDRAIN, BUT ARE SOLD ONLY WITH THE WARRANTIES, IF ANY, OF THE ORIGINAL MANUFACTURERS THEREOF. This warranty does not cover labor or other costs or expenses to remove or install any defective, repaired or replaced Goods. QuickDrain’s warranty does not apply to any Goods which have been subjected to misuse, mishandling, misapplication, neglect (including but not limited to improper maintenance), accident, improper installation, modification (including but not limited to unauthorized parts or attachments), or adjustment or repair performed by anyone other than QuickDrain or one of QuickDrain’s authorized agents. LIMITATION OF LIABILITY: QUICKDRAIN ‘S LIABILITY (WHETHER UNDER THE THEORIES OF BREACH OF CONTRACT OR WARRANTY, NEGLIGENCE, OR STRICT LIABILITY) FOR ITS GOODS SHALL BE LIMITED TO REPAIRING OR REPLACING PARTS FOUND BY QUICKDRAIN TO BE DEFECTIVE, OR AT QUICKDRAIN’S OPTION, TO REFUNDING THE PURCHASE PRICE OF SUCH GOODS OR PARTS THEREOF. AT QUICKDRAIN ‘S REQUEST, BUYER WILL SEND, AT BUYER’S SOLE EXPENSE, ANY ALLEGEDLY DEFECTIVE PARTS TO A LOCATION OF QUICKDRAIN’S CHOOSING. DISCLAIMER OF CONSEQUENTIAL DAMAGES: IN NO EVENT SHALL QUICKDRAIN BE LIABLE FOR CONSEQUENTIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH THIS AGREEMENT, INCLUDING WITHOUT LIMITATION TO BREACH OF ANY OBLIGATION IMPOSED ON QUICKDRAIN HEREUNDER OR IN CONNECTION HEREWITH. CONSEQUENTIAL DAMAGES FOR PURPOSES HEREOF SHALL INCLUDE, WITHOUT LIMITATION LOSS OF USE, INCOME OR PROFIT OR LOSSES SUSTAINED AS THE RESULT OF INJURY (INCLUDING DEATH) TO ANY PERSON OR LOSS OF OR DAMAGE TO PROPERTY (INCLUDING WITHOUT LIMITATION PROPERTY HANDLED OR PROCESSED BY THE USE OF THE GOODS, OR DAMAGES OR LOSSES SUSTAINED AS THE RESULT OF WORK STOPPAGE). BUYER SHALL INDEMNIFY AGAINST ALL LIABILITY, COST OR EXPENSE WHICH MAY BE SUSTAINED BY QUICKDRAIN ON ACCOUNT OF ANY SUCH LOSS, DAMAGE OR INJURY. ©2022 OateySCS. All Rights Reserved. This information is based on data believed to be reliable but Oatey makes no warranties, express or implied, as to its accuracy and assumes no liability arising out of its use. The data listed falls within the normal range of product properties but should not be used to establish specification limits or used alone as the basis of design. Oatey’s liability to purchasers is expressly limited to the terms and conditions of sale. Oatey is a trademark of Oatey Co. Oatey Co. is part of the Oatey family of companies. All other trademarks can be found on Oatey.com
