ADA Shower Dimensions & Specifications Guide

Section 608 is a technical section. It tells you how to build an accessible shower once you have established that you need one. The question of whether you need one, and how many, is answered by the scoping requirements in Chapter 2 — principally §213.3.6, which requires that where showers are provided in toilet or bathing rooms, at least one must comply with §608.

Title III of the ADA covers public accommodations and commercial facilities such as hotels, medical offices, gyms, schools, restaurants, and retail locations. Title II covers state and local government facilities. If you are building or altering a bathing facility in either category, §608 is not optional guidance.

Commercial ADA Compliance vs. Residential Barrier-Free Design

This is one of the most common sources of confusion for homeowners. Nobody is going to cite a homeowner for building a 34" shower in a private residence. But the 36" × 36" and 30" × 60" dimensions exist because they relate directly to wheelchair movement, transfers, reach ranges, and usability.

Residential accessibility may also be governed by other standards. The Fair Housing Act establishes accessibility requirements for certain multifamily housing, while ICC A117.1 — Accessible and Usable Buildings and Facilities — is the technical standard commonly referenced by state and local building codes.

2010 ADA Standards vs. ICC A117.1

Architects and contractors often work with both. The local building official enforces the locally adopted building code and referenced accessibility standard, while federal ADA requirements may apply separately.

Compliance with one standard does not automatically guarantee compliance with another. For commercial work, identify the locally adopted accessibility standard and compare its requirements with the 2010 ADA Standards before construction.

1. Transfer Type Shower Compartments (§608.2.1)

The word that matters is exact. Unlike most other dimensions in §608.2, this is not simply a minimum.

A transfer shower is designed to be used from a seated position. The user pulls alongside the open face, transfers from a wheelchair onto the seat, and must be able to reach the controls, hand shower, and grab bars from that seated position.

The outside clearance is another important detail. Because the 48" dimension is measured from the control wall, the required clear floor space extends approximately 12" past the far edge of a 36"-wide compartment. Centering the clearance on the opening is a common plan-review failure.

Transfer compartments are useful where floor area is limited and the user can independently transfer from a mobility device to the shower seat.

Browse our 36×36 transfer shower bases.

2. Standard Roll-In Type Shower Compartments (§608.2.2)

The defining feature is the open face. A user in a wheeled shower chair can roll into the compartment without transferring to a fixed seat.

The required clearance is 30 inches wide minimum by 60 inches long minimum adjacent to the open face. This figure is frequently misquoted as 36" wide, which is the transfer-type requirement.

Although 30" × 60" is the minimum permitted size, additional depth can improve usability for caregivers and assisted bathing.

Standard roll-in showers are commonly used in hospitals, senior living facilities, rehabilitation environments, accessible hotel rooms, and homes designed for wheeled shower-chair access.

Browse our roll-in shower bases, or read our guide on how to choose a roll-in shower.

3. Alternate Roll-In Type Shower Compartments (§608.2.3)

The alternate roll-in provides additional maneuvering room inside the shower while retaining a partial front wall.

That retained wall can improve water containment and provide a mounting location for accessories or a seat where permitted.

Grab bars are installed on the back wall and the side wall farthest from the entry, no more than 6" from adjacent walls, and are not placed above the seat (§608.3.3).

This configuration can be especially useful in retrofit projects where bathroom geometry makes a fully open standard roll-in layout difficult.

Grab Bar Placement, Diameter and Structural Backing

Two of these figures are often treated as approximate and are not. The 1½" wall clearance is a fixed dimension rather than a minimum — closer and a hand cannot pass behind the bar, further out and an arm can become trapped between bar and wall during a fall.

Grab-bar compliance also depends on the complete installed assembly, not just the rating of the bar itself. Structural backing must be capable of transferring the required load into the framing, which generally means solid blocking rather than fasteners into backer board alone.

A practical construction approach is to install a broad band of solid backing behind planned grab-bar locations — roughly 30" to 38" above the finished floor captures both the 33"–36" bar range and the 17"–19" seat range — rather than trying to anticipate one exact fastener line.

Photographing the blocking before the walls are closed can also provide useful documentation during construction and inspection.

See our ADA compliant grab bars, or read the ADA grab bar guide.

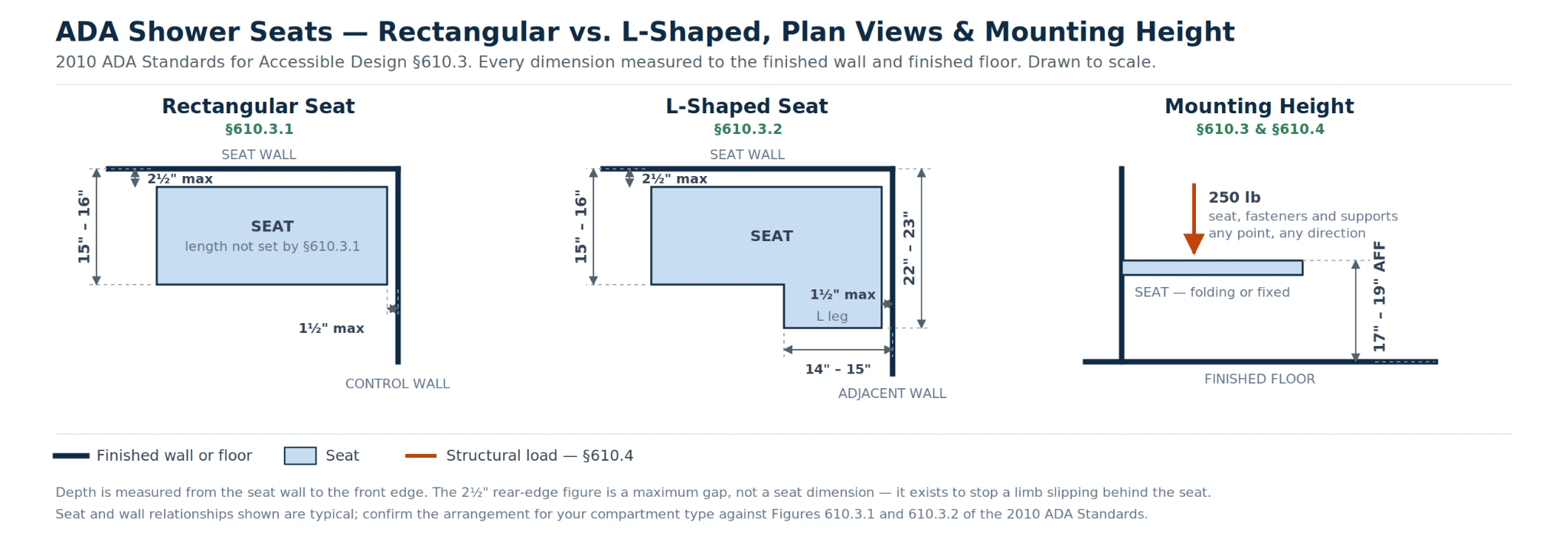

Shower Seat Requirements: Rectangular vs. L-Shaped

A folding or non-folding seat is required in transfer type compartments. In roll-in compartments, seat requirements depend on the applicable scoping provisions — for example, roll-in showers in transient lodging guest rooms with mobility features.

Where a roll-in shower includes a seat under the applicable ADA requirement, that seat must fold so it does not obstruct a user who remains in a wheeled shower chair.

Browse our ADA folding shower seats.

Controls, Faucets and Hand Shower Specifications

There is no single universal ADA shower-control height. Transfer compartments and roll-in compartments use different placement rules, and publishing 38"–48" as a universal figure will place controls incorrectly in a roll-in.

The hand shower must be usable both as a fixed-position shower head and as a hand-held spray unit, on a hose at least 59" long. If it includes an on/off control, that control must be non-positive shut-off, and delivered water is limited to 120 °F.

Controls must be operable with one hand without tight grasping, pinching, or twisting of the wrist, at no more than 5 pounds of force. In practice this favours lever or paddle handles over round knurled knobs.

Thresholds, Curbs and Keeping the Water In

A low threshold improves accessibility, but it also creates a water-management challenge. Half an inch is not much of a dam, and a wet bathroom floor is a fall hazard for exactly the person the shower was built to protect. Curbless and low-threshold showers must be designed to direct water toward the drain before it reaches the bathroom floor.

For more information, see our curbless shower installation guide.

A 60-inch turning circle is often the simplest layout when enough room is available. A T-shaped turning space can provide another compliant solution in tighter rooms, where a user reverses into one arm to change direction rather than turning in place.

Permitted overlap between turning spaces and fixture clearances is an important part of designing compact accessible bathrooms.

Preventing Door Swing Encroachment

Common solutions include outward-swinging doors where permitted, pocket doors, or sliding door systems that eliminate the interior swing arc. Outward swing is usually the cheapest fix; a pocket door generally gives the best result.

Accounting for Finished Wall Thickness

Every dimension in §608 is measured between finished surfaces, not from stud to stud. This is the single most common cause of a failed ADA shower, because the error is invisible until the tile is on.

Work backward from the finished dimension. For example, a transfer compartment must finish at exactly 36" × 36". With ½" backer board and roughly ⅜" of thinset and tile on each wall, that means framing near 37¾" stud to stud on each axis — but the actual build-up of your specific materials is what governs.

Material thickness varies. Large-format porcelain, mosaics, waterproof wall panels, backer board, membranes, and other systems can all create different finished build-ups. Note also that a roll-in is a minimum, so overshooting is safe — a transfer compartment is exact, so it can fail for being too large as well as too small.

Trench Drains vs. Center Drains

Drain location influences the direction of floor slope and the finished elevation at the shower entry.

A center drain typically requires the floor to pitch from multiple directions toward one point, which can make a clean half-inch transition at the entry harder to achieve.

A linear or trench drain can allow the shower floor to slope in a single plane, which simplifies zero-threshold and low-threshold shower design and handles the higher flow of a hand shower plus fixed head.

Standard practice is roughly ¼" per foot of fall to the drain — enough to clear water, gentle enough that a shower chair does not roll. Over a 60"-deep compartment that is about 1¼" of total drop, which is why recessing the subfloor matters on a curbless build.

See our linear drain guides.

The Inspection Checklist

For commercial projects, verify dimensional requirements, seat and grab-bar reinforcement, documentation, lead time, and any listings or approvals required by your authority having jurisdiction.

Browse ADA compliant shower stall kits, walk-in shower kits, and curbless shower systems, or call 877-392-2531 for help matching a shower configuration to your floor plan.

The dimensions in this guide are based on the 2010 ADA Standards for Accessible Design. Always verify the primary standards and confirm applicable state or local amendments with the authority having jurisdiction before construction.
