Description
Linear Shower Drain | WALLdrain by QuickDrain | 48"
Linear Shower Drain. WALLdrain body kit for a wall up to 48" wide wall. This revolutionary system slopes the floor in one direction and hides the drain in the wall.
WallDrain represents the latest innovation in linear drain design from QuickDrain USA. This revolutionary system allows for the most seamless design possible – by installing the drain in the wall itself and sloping the shower floor to one subtle channel, there will be absolutely no disruption in the shower design.
The WallDrain System features all of the hallmark QuickDrain elements of style and technology that have made our linear drains consistently superior:
Internally sloped drain configuration. Our fully sloped drain ensures no standing water, which helps to prevent build up and bacteria growth. On site adjustability. The WallDrain system can accommodate shower lengths of 26″ – 72″ with the use of one drain and 56″ – 96″ with two drains linked together. Installation flexibility. WallDrain can be installed with topical liquid waterproofing or sub-drainage system (hot mop, copper or PVC pan liners). Can be installed with any thickness of wall tile and up to 3/4″ floor tile.
WALLD48 Features:
-
WALLD48 drain body is made of 18 gauge 316L stainless steel and features internally sloped drain configuration and 2″ vertical waste outlet.
-
Length adjustable from 26″ to 48″.
-
Can be used with topical liquid waterproofing or sub-drainage system (hot mop, copper pan or PVC pan liners).
-
Drain capacity for 2″ outlet is 12 GPM (actual volume limited by plumbing lines and p-trap).
Included with WALLD48:
-
48″ Vertical Installation Panel (1)
-
Drain Body (1)
-
48″ Adjustment Panel (1)
-
Adjustment Panel Base (1)
-
Magnet Cover (1)
-
Tile Edging (1)
-
Magnets (5)
-
48″ TileIn Cover (1)
-
Drain Extension (2)
-
Standoff (2)
-
48″ Furring Strips (8)
-
Reinforcement Tape
-
Inside Corners (2)
-
Outside Corners (2)
-
Transition Tape (1)
-
No-Hub Coupling (1)
SPECIFICATION SHEETWALLdrain BODY KIT ONLY. SLOPING AND WATERPROOFING MATERIAL SOLD SEPARATELY.
Linear Shower Drain | WALLdrain by QuickDrain | 48"
Shipping: TYPICALLY SHIPS IN TWO BUSINESS DAYS | When ordered on Standard Business Days (M-F) before 12PM EST.
Need it FAST? Expedited Shipping Options are Available at Check-out.

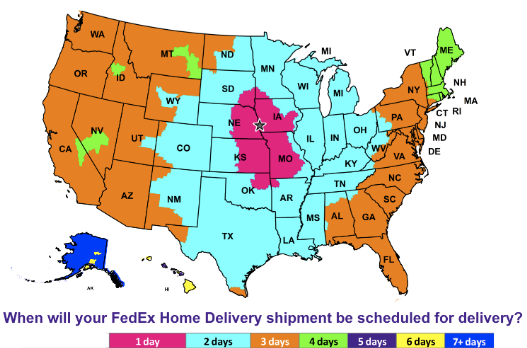

FedEx Service Maps and charts are a general representations of transit, and not a guarantee of delivery time.
Please Call 877.392.2531 for shipping availability and cost to ship to locations outside of the Contiguous USA.
Specification Sheets
Lead Time and Shipping Info
Videos
Warranty Information
LIFETIME WARRANTY
QuickDrain USA low-profile linear shower drains are intended for use with tile showers. Both the shower drains and the liner must be installed in accordance with the manufacturers published instructions and the applicable codes. Ceramic tile must comply with ANSI A137.1. Underlayment must comply with the applicable code or ANSI A118.10. Our drains are in compliance with the 2009 International Residential Code, the International Plumbing Code and the Uniform Plumbing Code. When installed in accordance with our specifications and in conjunction with local building codes, our drains carry a lifetime guarantee and warranty. Any defective drain that has been properly installed will be replaced at no charge. There is no warranty on installation.
